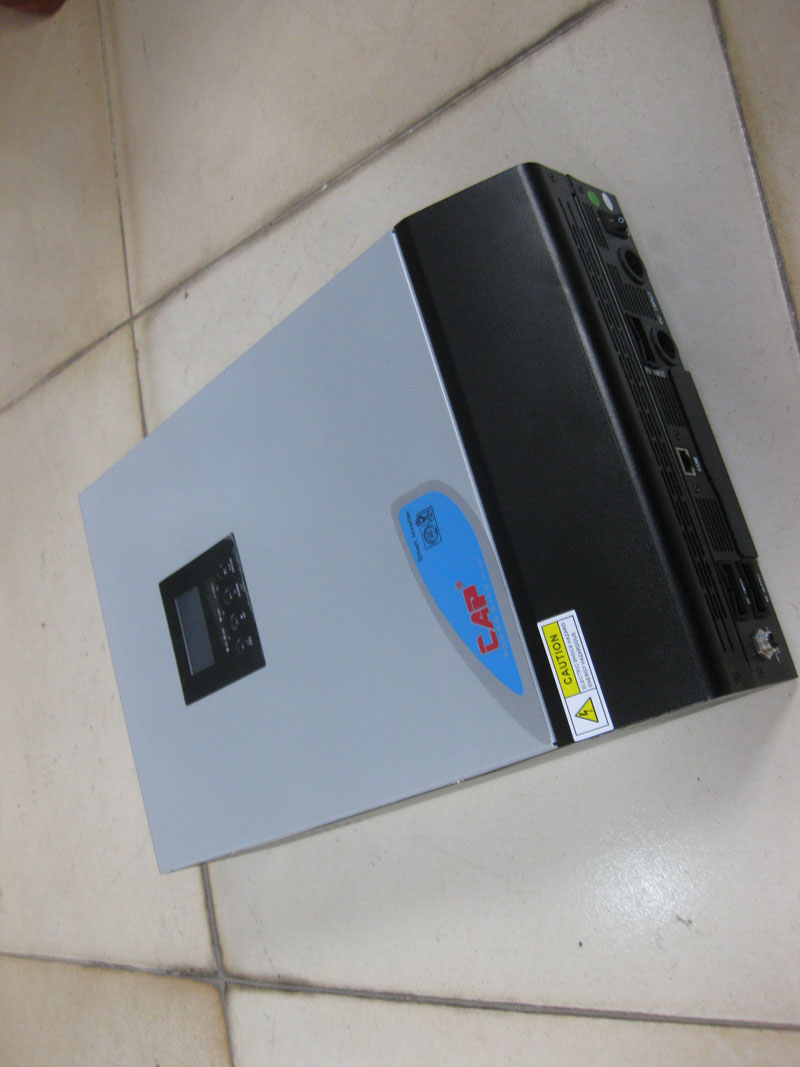

Single-phase Photovoltaic Controller and Inverter Independent Power Generation System
 Model
L-1
L-3
L-5
L-10
L-15
L-20
L-30
L-40
L-50

Power Rating (W)
W
100
300
500
1000
1500
2000
3000
4000
5000

Battery Voltage (V)
12
12
12
24
24

12/24/48
12/24/48
12/24/48
48




4.5




Solar Panel
Maximum Voltage (V)
25
50
50
100




Maximum Current (A)
20
40
60





MPPT Function
user option






Inverter
Output

Voltage (V)
220±3%






Frequency (Hz)
50±0.5






Wave Form
pure sine wave






THD (%)
≤3% for linear load,<5% for nonlinear load ,all of them in full load condition






Dynamic Response
Time (ms)
<10








Efficiency (%)
≥85%  linear load








Overload Capacity
overload 120% or short circuit automatically shut off the inverter, 1 seconds after automatic restart the inverter










Line complementary Input
220V/50Hz








Line complementary output
DC priority design ,when battery voltage is too low, the inverter output is turned by line bypass output to load









DC
Output
USB Power Supply
User option








12V DC Power Supply








Operating Temperature工(℃)

-40 — +50








Type of Cooling
temperature control forced ventilation








Relative Humidity (%)
0-90% non-condensate








Indication LED Indicator
solar panel (blue), battery normal (yellow), battery failure(red), power start (green/yellow), inverter normal (yellow), line normal (green)









output overload and short circuit, battery low voltage and over charging protection, solar panel Polarity reverse connect protection, overheating protection, lightning protection








Physical Size (Lcm×Wcm×Hcm)
140*90*3
23*16*9
23*16*9
23.8*12.6*9.5

45*25*11.3
63*25*13.8






Net Weight (Kg)
0.3
2.3
2.6
2.8

4.9
6.8
7.5
8.5
